Latiguillo - Cat. 6A FTP
· Los conductores de los latiguillos Cat. 6A S/FTP están fabricados en
cobre trenzado flexible, con capuchones termosellados que facilitan y
garantizan la instalación en aplicaciones de alta densidad.
·
Ofrece un gran rendimiento combinado con los Keystones, patch panels y
cables de GAESTOPAS.
· El 100% de los cables han sido testados.
· Los latiguillos deben ser testados con elFluke DSX-5000.
· Radio
mínimo de curvatura: 8D (SFTP).

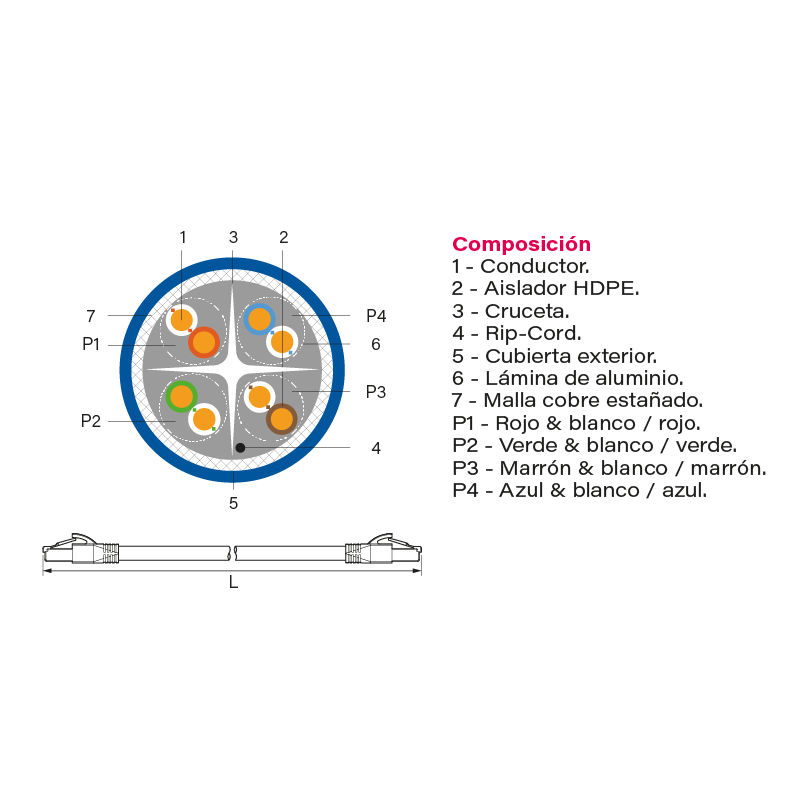

Materiales
Conductor 100% cobre.
Revestimiento exterior de LSZH baja emisión de gases y libre de halógenos.
Revestimiento exterior de LSZH baja emisión de gases y libre de halógenos.
Color revestimiento exterior
Gris
Azul
Verde
Rojo
Negro
Azul
Verde
Rojo
Negro
| Referencia | Tipo de cable | Categoría | Longitud (m) | Tipo de conector Conector 1 | Tipo de conector Conector 2 | Color de la vaina | Sección transversal de AWG | Asignación de pines | Valor NVP | Embalaje (unidades) |
|---|---|---|---|---|---|---|---|---|---|---|
| CL126A1.05 | S/FTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.10 | S/FTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.100 | S/FTP | 6A | 10,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.150 | S/FTP | 6A | 15,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.20 | S/FTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.200 | S/FTP | 6A | 20,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.250 | S/FTP | 6A | 25,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.30 | S/FTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.300 | S/FTP | 6A | 30,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.50 | S/FTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.500 | S/FTP | 6A | 50,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A1.70 | S/FTP | 6A | 7,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.05 | S/FTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.10 | S/FTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.100 | S/FTP | 6A | 10,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.150 | S/FTP | 6A | 15,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.20 | S/FTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.200 | S/FTP | 6A | 20,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.250 | S/FTP | 6A | 25,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.30 | S/FTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.300 | S/FTP | 6A | 30,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.50 | S/FTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.500 | S/FTP | 6A | 50,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A3.70 | S/FTP | 6A | 7,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.05 | S/FTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.10 | S/FTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.100 | S/FTP | 6A | 10,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.150 | S/FTP | 6A | 15,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.20 | S/FTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.200 | S/FTP | 6A | 20,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.250 | S/FTP | 6A | 25,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.30 | S/FTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.300 | S/FTP | 6A | 30,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.50 | S/FTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.500 | S/FTP | 6A | 50,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A4.70 | S/FTP | 6A | 7,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.05 | S/FTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.10 | S/FTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.100 | S/FTP | 6A | 10,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.150 | S/FTP | 6A | 15,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.20 | S/FTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.200 | S/FTP | 6A | 20,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.250 | S/FTP | 6A | 25,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.30 | S/FTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.300 | S/FTP | 6A | 30,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.50 | S/FTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.500 | S/FTP | 6A | 50,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A6.70 | S/FTP | 6A | 7,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.05 | S/FTP | 6A | 0,50 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.10 | S/FTP | 6A | 1,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.100 | S/FTP | 6A | 10,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.150 | S/FTP | 6A | 15,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.20 | S/FTP | 6A | 2,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.200 | S/FTP | 6A | 20,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.250 | S/FTP | 6A | 25,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.30 | S/FTP | 6A | 3,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.300 | S/FTP | 6A | 30,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.50 | S/FTP | 6A | 5,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.500 | S/FTP | 6A | 50,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126A7.70 | S/FTP | 6A | 7,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
