Latiguillo - Cat. 6 FTP
· Los conductores de los latiguillos Cat. 6 FTP están fabricados en
cobre trenzado flexible, con capuchones termosellados que facilitan y
garantizan la instalación en aplicaciones de alta densidad.
·
Ofrece un gran rendimiento combinado con los Keystones, patch panels y
cables de GAESTOPAS.
· El 100% de los cables han sido testados.
· Los latiguillos deben ser testados con elFluke DSX-5000.
· Radio
mínimo de curvatura: 8D (FTP).

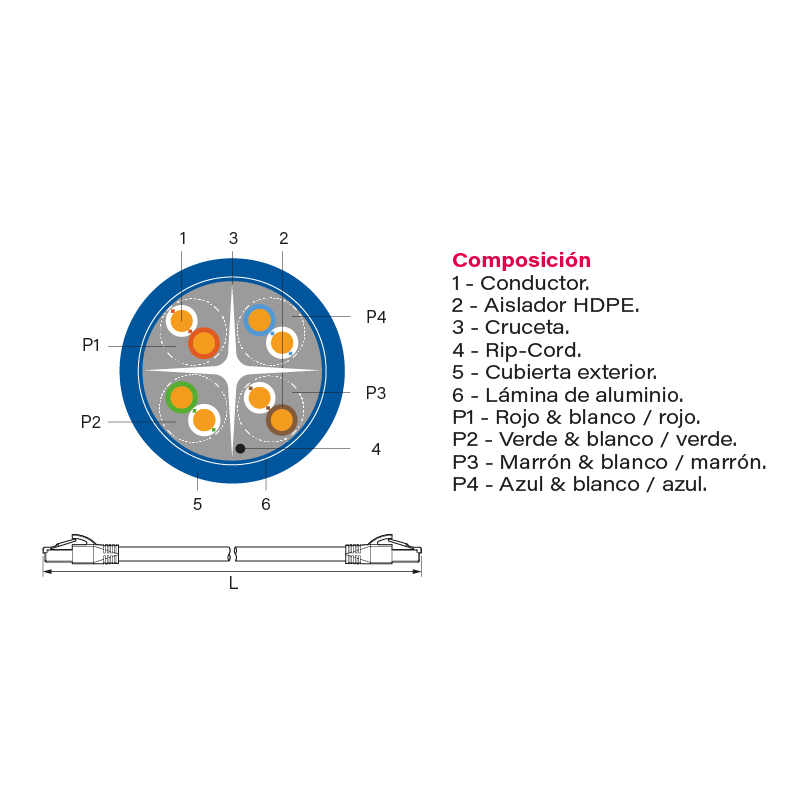

Materiales
Conductor 100% cobre.
Revestimiento exterior de LSZH baja emisión de gases y libre de halógenos.
Revestimiento exterior de LSZH baja emisión de gases y libre de halógenos.
Color revestimiento exterior
Gris
Azul
Verde
Rojo
Negro
Azul
Verde
Rojo
Negro
| Reference | Cable type | Category | Length | Type of connector connection 1 | Type of connector connection 2 | Colour outer sheath | AWG-size | Pin assignment | NVP value | Embalaje |
|---|---|---|---|---|---|---|---|---|---|---|
| CL126N1.05 | F/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.10 | F/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.100 | F/UTP | 6 | 10,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.150 | F/UTP | 6 | 15,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.20 | F/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.200 | F/UTP | 6 | 20,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.250 | F/UTP | 6 | 25,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.30 | F/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.300 | F/UTP | 6 | 30,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.50 | F/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.500 | F/UTP | 6 | 50,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N1.70 | F/UTP | 6 | 7,00 | RJ45 8(8) | RJ45 8(8) | Gris | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.05 | F/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.10 | F/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.100 | F/UTP | 6 | 10,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.150 | F/UTP | 6 | 15,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.20 | F/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.200 | F/UTP | 6 | 20,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.250 | F/UTP | 6 | 25,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.30 | F/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.300 | F/UTP | 6 | 30,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.50 | F/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.500 | F/UTP | 6 | 50,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N3.70 | F/UTP | 6 | 7,00 | RJ45 8(8) | RJ45 8(8) | Azul | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.05 | F/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.10 | F/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.100 | F/UTP | 6 | 10,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.150 | F/UTP | 6 | 15,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.20 | F/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.200 | F/UTP | 6 | 20,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.250 | F/UTP | 6 | 25,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.30 | F/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.300 | F/UTP | 6 | 30,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.50 | F/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.500 | F/UTP | 6 | 50,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N4.70 | F/UTP | 6 | 7,00 | RJ45 8(8) | RJ45 8(8) | Verde | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.05 | F/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.10 | F/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.100 | F/UTP | 6 | 10,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.150 | F/UTP | 6 | 15,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.20 | F/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.200 | F/UTP | 6 | 20,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.250 | F/UTP | 6 | 25,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.30 | F/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.300 | F/UTP | 6 | 30,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.50 | F/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.500 | F/UTP | 6 | 50,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N6.70 | F/UTP | 6 | 7,00 | RJ45 8(8) | RJ45 8(8) | Rojo | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.05 | F/UTP | 6 | 0,50 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.10 | F/UTP | 6 | 1,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.100 | F/UTP | 6 | 10,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.150 | F/UTP | 6 | 15,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.20 | F/UTP | 6 | 2,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.200 | F/UTP | 6 | 20,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.250 | F/UTP | 6 | 25,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.30 | F/UTP | 6 | 3,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.300 | F/UTP | 6 | 30,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.50 | F/UTP | 6 | 5,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.500 | F/UTP | 6 | 50,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
| CL126N7.70 | F/UTP | 6 | 7,00 | RJ45 8(8) | RJ45 8(8) | Negro | 26,00 | 1:1 | 69,00 | 1 |
